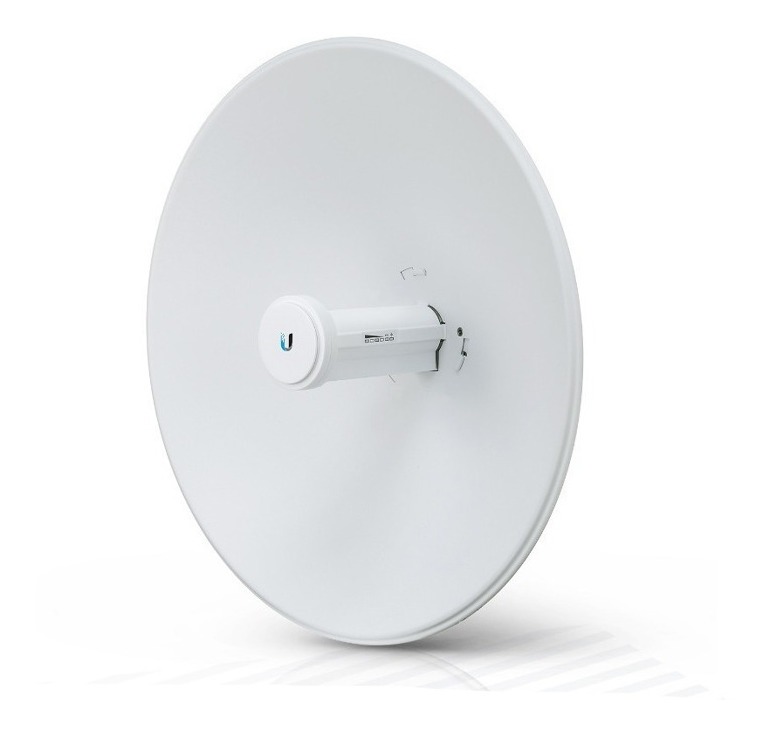

5 GHz Alto rendimiento airMAX® ac Bridge altamente eficiente, hasta 450 Mbps de ancho de banda, radio Wi-Fi dedicada para la gestión, Inyector PoE incluido.
Dimensions
420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight
2.22 kg (4.89 lbs)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption
8.5W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20 to 26VDC
Gain
25 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
MIPS 74Kc
Memory
64 MB
LEDs
Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed
Dish Reflector
Outdoor UV Stabilized Plastic
Powder-Coated SPCC
Mounting
Pole-Mounting Kit (Included)
Wind Loading
380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Noncondensing
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications
CE, FCC, IC
PBE-5AC-Gen2 Operating Frequency
Worldwide
2412 - 2472 MHz
5150 - 5875 MHz
USA: U-NII-1
2412 - 2462 MHz
5150 - 5250 MHz
USA: U-NII-2A
2412 - 2462 MHz
5250 - 5350 MHz
USA: U-NII-2C
2412 - 2462 MHz
5470 - 5725 MHz
USA: U-NII-3
2412 - 2462 MHz
5725 - 5850 MHz
PBE-5AC-Gen2 Output Power: 25 dBm
TX Power Specifications
Data Rate
Avg. TX
Tolerance
1x BPSK (½)
25 dBm
± 2 dB
2x QPSK (½)
25 dBm
± 2 dB
2x QPSK (¾)
25 dBm
± 2 dB
4x 16QAM (½)
25 dBm
± 2 dB
4x 16QAM (¾)
25 dBm
± 2 dB
6x 64QAM (2/3)
25 dBm
± 2 dB
6x 64QAM (¾)
24 dBm
± 2 dB
6x 64QAM (5/6)
23 dBm
± 2 dB
8x 256QAM (¾)
21 dBm
± 2 dB
8x 256QAM (5/6)
21 dBm
± 2 dB
RX Power Specifications
Data Rate
Sensitivity
Tolerance
1x BPSK (½)
-96 dBm Min.
± 2 dB
2x QPSK (½)
-95 dBm
± 2 dB
2x QPSK (¾)
-92 dBm
± 2 dB
4x 16QAM (½)
-90 dBm
± 2 dB
4x 16QAM (¾)
-86 dBm
± 2 dB
6x 64QAM (2/3)
-83 dBm
± 2 dB
6x 64QAM (¾)
-77 dBm
± 2 dB
6x 64QAM (5/6)
-74 dBm
± 2 dB
8x 256QAM (¾)
-69 dBm
± 2 dB
8x 256QAM (5/6)
-65 dBm
± 2 dB
